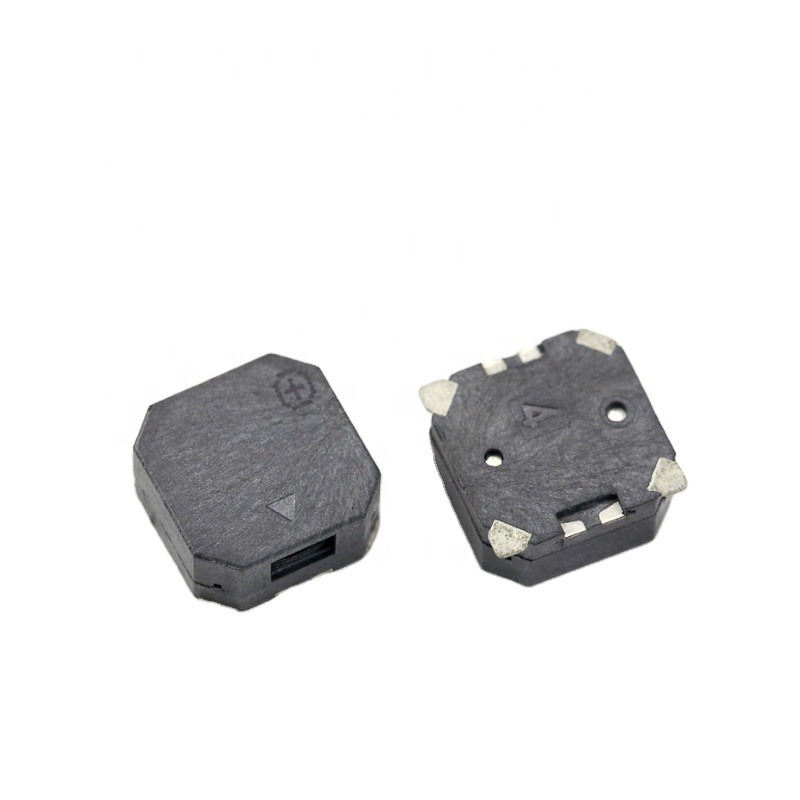

LCP LET8540CS 3v 5v Buzzer 95db electromagnetic magnetic smd passive buzzer

1000 Pieces
MOQ
LCP LET8540CS 3v 5v Buzzer 95db electromagnetic magnetic smd passive buzzer
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: LET8540CS-3.6L-2.7-16-R
Type: Buzzer
Description: Buzzer type mini SMD Electro-magnetic transducer
Dimension: 8.5*8.5*4mm
Rated Voltage: 3.6V
Operating Voltage: 2.5~4.5V
SPL: 95dB min.
Coil Resistance: 16±3Ω
Color: Black
Housing Material: LCP
MPQ: 1000PCS
Resonant Frequency: 2700Hz
Basis informatie
Model Number: LET8540CS-3.6L-2.7-16-R
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 1.1000PCS per coil 2.Total 10 coils per carton 3. Total 10000PCS carton 4.Volume:37.5 *37.5*35.5cm 5.Gross weight:13kgs
Supply Ability: 300000 Piece/Pieces per Month LET8540CS 3v 5v electromagnet magnetic Buzzer 95db passive smd b
Productomschrijving
  1. Buzzer Catalogue





             Piezo Buzzer                  Magnetic Buzzer                     Speaker                           Piezo disc

  2Buzzer Application





Our products are widely used in electric appliances,such as watches,toys, security systems,

medical devices,automobile;household appliances like refrigerators, washing-machines,

microwave ovens, telephones and other industries.

  3. Buzzer Dimensions

small piezo buzzer 3V 5V 9V 12V micro piezo transducer buzzer LPT9018BS

  4. Buzzer Model Details



1

Model No.

LET8540CS-3.6L-2.7-16-R

2

Rated Voltage (V)

3.6

3

Operating Voltage (V)

2.5~4.5

4

Coil Resistance (Ω)

16±3

5

Resonant Frequency (Hz)

2700

6

*Sound Pressure Level (dB/min)

95at10cm at Rated Voltage

7

*Current Consumption (mA/max)

100 at Rated Voltage

8

Operating Temperature (℃)

-40~+105

9

Storage Temperature (℃)

-40~+120

10

Weight (g)

0.5

11

Case material and colour

LCP / Black


  5. Related products




There are all kinds of products in in our company, such as Magnetic Buzzers, Piezo buzzers, Mylar Speakers, Alarms and so on. LHE products have been used in many famous electronic factories abroad .



  6. Our company Strengh

                                                                      Company Profile



One of the Leading Manufacturers in Acoustic Component Industry

      We supply SMD buzzers,automotive buzzers,piezo buzzers,electro-magnetic buzzers and piezo elements.

Capable to Make 5 to 8 Million Products Monthly

       Our factory covers 5000 square meters and our company has more than 250 skillful workers

 and 20 experienced engineers.It is furnished with advanced facilities for production with four

 automatic machines.

Operating According to IOS/TS 16949,IOS 14000 and IOS 9000 Guidelines to

Ensure the Highest Quality All the Time.



                                                                                            Workshop Disply

Our company specializes in micro acoustic products since 1995. Our company produces cutting-edge acoustic components for more than 20 years. We have focused on research and development of our products. Our main products are: magnetic and piezoelectric buzzers,speakers and piezo elements.

                                                                     Exhibition Detail



  7.  Certifications







  8. Magnetic Buzzer FAQ

Delivery time:  Sample order 3 working days, Container order 10 working days.

Minimum order quantity :  1000PC

Guarantee period:  12 months

OEM service:   Support (Print logo on carton for free)
