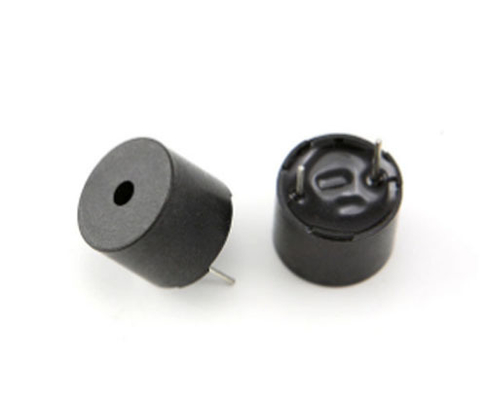

FBMB1295 1.5V 3V 5V 9V 12V 12*9.5mm Plastic Piezo Buzzer With Pin Active Buzzer Electric Magnetic Buzzer

1 Piece
MOQ
$0.12(1 - 999 Pieces) $0.11(>=1000 Pieces)
Prijs
FBMB1295 1.5V 3V 5V 9V 12V 12*9.5mm Plastic Piezo Buzzer With Pin Active Buzzer Electric Magnetic Buzzer
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: FBMB1295
Type: Buzzer
Material: Plastic
Color: Black
Input Type: AC, DC
Voltage - Rated: 12vpp
Voltage Range: 3-50vpp
Frequency: 2500
Technology: Piezo
Operating Mode: Pulse
Duration: Repeating every 1.2 Sec
Current - Supply: 50
Operating Temperature: -40°C ~ 85°C
Mounting Type: Custom
Termination: Surface Mount
Size / Dimension: 12MM
Height - Seated (Max): 12mm
Voltage - Input (Max): 30V p-p
Capacitance @ Frequency: 80000pF @ 1kHz
Output Type: Analog
Height (Max): 23
Frequency - Self Resonant: 2500
Efficiency - Type: Half Space Sensitivity
Power - Max: 10W
Rated Voltage: 12
Basis informatie
Model Number: FBMB1295
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard Export Carton
Productomschrijving

FBMB1295 1.5V 3V 5V 9V 12V 12*9.5mm piezo buzzer with pin active buzzer Electric magnetic buzzer

Model No

FBMB1295-3V

FBMB1295-5V

FBMB1295-9V

FBMB1295-12V

Rated Voltage

3VDC

5VDC

9VDC

12VDC

Operating Voltage

2-5VDC

4-8VDC

7-12VDC

8-15VDC

Max.Rated Current

30mA/3VDC

30mA/5VDC

30mA/9VDC

30mA/12VDC

Min.Sound Pressure Level

75dB/10cm

80dB/10cm

85dB/10cm

85dB/10cm

Resonant Frequency

2.7±0.5KHz

2.7±0.5KHz

2.7±0.5KHz

2.7±0.5KHz

Operating Temperature

-20~+70℃

-20~+70℃

-20~+70℃

-20~+70℃

Storage Temperature

-30~+80℃

-30~+80℃

-30~+80℃

-30~+80℃

Weight

2.5g

2.5g

2.5g

2.5g



1.When can we get the reply?
Any inquiries will be replied within 24 hours.
Our SUNPHOR sales team will try our best to support you.

2.What about minimum order quantity?
We have no limit for MOQ,so you can even buy only 1 piece.
Welcome to buy sample to test first.

3.Do you have EU style adapter?
A: Yes,We have EU,UK and USA style adapter

4.Can customize,modify and develop products according to the design drawing?Yes,we provide OEM service and can customize products according to the drawing.

5.How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by ISO9000, 3C, CE and FCC.

6.What about delivery time?
Sample, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. Andit also depends on product and quantity.
If want to know the exact time. Email us the quantity,

We will check the time for you.

7.What about terms of payment?
Payment terms: T/T, west Union Paypal and L/C etc.

8.How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times

9.How you will send the goods to us?
We will send the goods to you by DHL,FEDEX,UPS, EMS,AIR etc.
