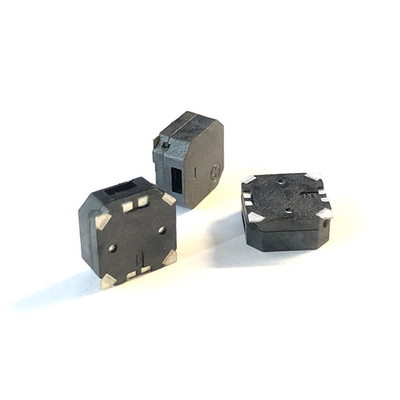

Thuis /Producten/Oppervlakte Mount Piezo Buzzer/Appliances Device 86db 5v Buzzer 2500hz 8.5*8.5*4mm HYG8505A 12v Electric Surface Mounted Piezo Piezo Buzzer Buzzer

Appliances Device 86db 5v Buzzer 2500hz 8.5*8.5*4mm HYG8505A 12v Electric Surface Mounted Piezo Piezo Buzzer Buzzer

1000 pieces
MOQ
Appliances Device 86db 5v Buzzer 2500hz 8.5*8.5*4mm HYG8505A 12v Electric Surface Mounted Piezo Piezo Buzzer Buzzer
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: HYG8505A
Type: Buzzer
Material: PPO, PPO
Color: Black
Packaging: custom
Input Type: DC
Voltage - Rated: 1.5V
Voltage Range: 4-6V
Frequency: 2500Hz, 2500Hz
Technology: Electromechanical
Operating Mode: Click
Duration: Variable
Current - Supply: 90mA
Operating Temperature: -20°C ~ 60°C
Mounting Type: Surface Mount
Termination: Surface Mount
Size / Dimension: 8.5*8.5*4mm
Height - Seated (Max): 0.2m
Voltage - Input (Max): 5V
Impedance: 30±5
Capacitance @ Frequency: Not Applicable
Output Type: Not Applicable
Frequency Range: 2500Hz
Height (Max): 5mm
Frequency - Self Resonant: 2500Hz
Efficiency - Type: Sensitivity
Rated Voltage: 5V
Cross Reference: POK
Application: Electrical Appliance
Product name: Piezo Buzzer
Name: HYG8505A
Housing material: PPS
Certificering: CQC/VDE
Size: 8.5*8.5*4mm
Weight: 0.6g
Condition: 100% Original
Basis informatie
Certificering: CQC/VDE
Model Number: HYG8505A
Betalen & Verzenden Algemene voorwaarden
Packaging Details: put in bubble chamber, 100 pcs per box, 5000pcs per carton for exporting, the carton dimension is 50*42*27cm
Productomschrijving
Product Description



Type Unit 86db 5v Surface Mounted Device  buzzer 2500hz  8.5*8.5*4mm HYG8505A
Rated Voltage V 5
Operating Voltage V 4~6
*Rated Current(MAX) mA ≤90
*Min Sound Output at 10 cm dB 2.7~3.2KHz≥86
Coil Resistance   30±5
*Resonant Frequency Hz 2500
Operating Temperature  ℃ -20~+60
Storage Temperature ℃ -30~+85
Weight g 0.6



Specifications



Packaging



application



Company profile



Certifications



shipping
